Metal / Coal Briquetting Plant
Coal / Metal Briquette Press
This series of briquette press machines can be used to make charcoal briquettes of different shapes. The raw material comes from small size waste charcoal broken in storage or while transportation, or comes from charcoal chunk after biomass burned. With this machine, the waste charcoal chunk can be made into charcoal briquettes or charcoal stick and recycled for barbecue, room heating etc.
(1) Roll Type Coal / Metal Briquette Press Model 350
(For oval shape briquettes from charcoal powder)

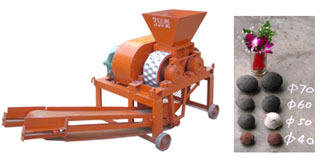

Roll Type Charcoal Briquette Press Model 350
This machine can be used to make charcoal briquettes of oval shape. This machine also can be used to make briquettes from anthracite powder, coal powder and many other materials.
Technical Date of 350 Briquette Press
Pressure of mould wheel: 600kg/cm2
Rotate speed of mould wheel: 16r/min
Associated power: 4kw-4
Yield (capacity): 2-3T/h (for charcoal) 5-6t/h (for coal)
Material of roller: 20 Mn
Weight: 600kg
Size: 3600 *1500 *1600 mm
(2) Four Rollers Double Pressing Briquette Press Model 360II
(For oval, square and pillow shape briquettes from charcoal powder)

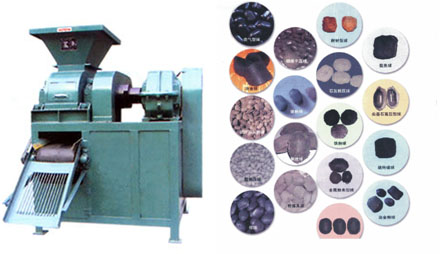

Four Rollers Double Pressing Briquette Press Model 360II
Four Rollers Double Pressing Briquette Press can supply higher pressure and higher intensity during production of briquettes; it’s mainly used in the briquettes making of various color and black metallic mine powder. It can be used to make briquettes from coal powder, charcoal powder and coke powder with binder.
This type of briquette press have two larger rollers in a fixed position in the frame, the other two smaller rollers are moveable. As its named implied, it has four rollers and press briquettes for twice times, so it make briquettes stronger and in proper density. Meanwhile, it is easy for combustion, no smell and last longer when burning.
This machine is national patent product in China.
Technical Date of 360 Briquette Press
Capacity: 4000KG/Hour (For coal powder)
2000KG/Hour (For charcoal powder)
Power: 7.5-11 KW
Width of roller: 250mm
Diameter of roller: 360mm
Pressure of machine: 20-30T
Endurable pressure of briquettes: 60kg
Rotation of main shaft: 18 rev/min
Material of roller: 65 Mn
Weight of machine: 1850KG
Size: 1300*1150*2050mm

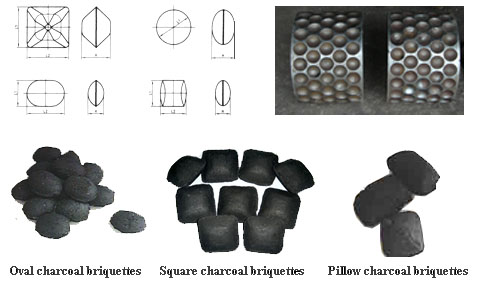

This machine can be used to make charcoal briquettes of oval, square and pillow shape (with different moulds) from charcoal dust or charcoal powder.
Diameters of briquettes range from 20mm to 60mm according to requirement of customers.
(3) Model YPC500 Briquette Press
This machine is applicable for making briquettes of Round, Square, Rectangle and Cube shape from charcoal powder. The output briquette is in perfect shape, good appearance, and high quality and strong enough that is not easy broken when dropped from from 150 cm height. Meanwhile, it is easy for combustion, no smell and last longer when burning.
Technical Date of YPC500 Briquette Press
Output Capacity: 9000 pieces of briquettes per hour (for briquettes of 10g)
Shape of products: Round, Square, Rectangle, Cube shape
Power: 7.5kw
Size: 1200×900×1500mm
Weight: 2500KG
Shelf life: 6 years
Term of Warranty: 12 Month
 |
 |
Small round briquette |
rectangle shape: 60*35*15mm |
(4) Screw Type Charcoal Extruder Model TFCX150 (for making charcoal stick)
 |
 |
This machine can be used to extrude charcoal stick of different diameter (diameter range: 15-65mm) in cylinder and square shape with or without hole through different moulds from charcoal dust or charcoal powder.
Technical Date of TFCX150 Charcoal Extruder
Output:150 kg/h
Motor Power:5.5 kw
Diameter of finished charcoal stick: 15-65mm
Overall size: 1300*800*1600mm
Packing size:1550*1310*1360mm
Weight: 800KGS
(5). DRIER
Complete Tunnel Drier Unit
This unit is used to dry the charcoal briquettes.
This unit uses hot air as the drying medium to contact material continuously, enabling moisture content in wet material to be gasified and to be evaporated, to achieve the purpose of drying. This unit is suitable for drying of powdered charcoal product, also for drying of other products similar to the powered charcoal product.
This unit is composed mainly of the dryer, the centrifugal fan, and the hot-blast stove and so on.
Technical Date of Belt Drier
Technical data:
Capacity: 3T/hour
Input moisture content of charcoal briquette: 30%
Output moisture content of charcoal briquette: less than 5%
Drying area: 15m2
Number of conveyor belt: 1 piece
Width of conveyor belt: 1meter
Linear velocity of conveyor belt: 0.1-0.6m (adjustable)
Power: a. conveying: speed-adjustable motor 2.2KW
b. Air supply: motor 15KW
Air temperature: 250°C
