Glazed tile roll forming lines

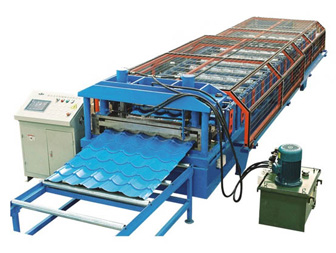

The glazed tile roll forming line includes many types, such as GCT29-185-925,GCT40-257-1028, GCT52-169-845. They are widely used as the roof of garden-like factory, hotel, villa, exhibition center, civil construction and so on.

Glazed tile roll forming lines
Glazed tile roll forming lines

MATERIAL:

  • Coil Width: 1000 mm~1250mm
  • Suitable Coil Thickness: 0.3mm - 0.6mm
  • Suitable Raw Materials: Pre-painted Coil
  • Yield bearing stress: 235MPa

MACHINE COMPONENTS:

  • Hydraulic Un-coiler: 1 set
  • Roll-Forming M/C: 1 set
  • Hydraulic Pressing Die/Cutting M/C: 1 set
  • PLC Control System: 1 set
  • Product Rack (un-powered): 1 set
Glazed tile
Glazed tile
Glazed tile
Glazed tile

Glazed tile roll forming lines panel drawing

Model Coil width Thickness Effective width Profile drawing
GCT29-185-925 1000 0.3-0.7 925
GCT40-257-1028 1250 0.4-1.0 1028
GCT52-169-845 1000 0.3-0.7 845
GCT45-253-760 1000 0.3-0.8 760
GCT39-190-950 1000 0.3-0.7 950
GCT25-210-1122 1200 0.3-0.7 1122
GCT24-200-800 1000 0.4-0.6 800
GCT40-200-1000 1200 0.4-0.6 1000

construction drawing of glazed tile roll forming lines

Construction drawing of glazed tile roll forming lines
