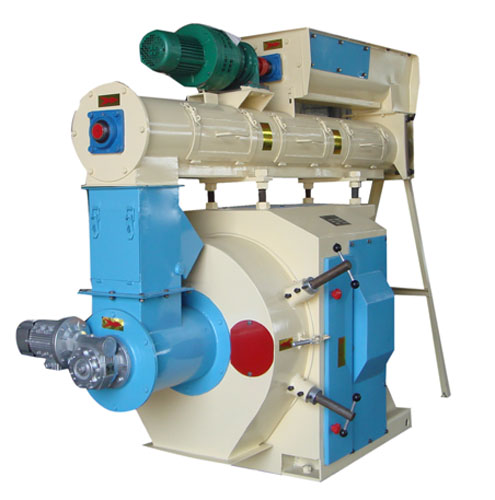

Chicken Feed Mill
Chicken feed pellet machine is a kind of feed processing machine which uses corn, soybean meal, straw, grass and other raw material to stir the pellet directly according to the proportion of ingredients.Chicken feed pellet machine is widely used in large, medium and small feed processing plants, large, medium and small livestock farms, poultry and livestock farms (eg. chicken farms use chick cage), large and medium-sized farmers and individual breeding households.And it can process grass, straw particles and inorganic fertilizer granules.Coarse fiber granulation, such as sawdust, rice husk, cotton stalk, cottonseed skin, weeds and other crops straw, domestic waste, factory waste, low adhesion rate, difficult to form material granulation.It can also be applied to biological fertilizer, organic fertilizer, compound fertilizer and low temperature.
Steps In Feed Production of Chicken Feed Mill
- Raw material weighing (simply measuring that the right amount of each ingredient is being made)
- Raw material grinding
Use of hammer mill on dry ingredients
- Mixing of ingredients and other fluids
possible types:
- Shovel mixing
- cCement mixer
- Farm scale mill
- Industrial feed plant
- Reduced feed loss during feeding
- Reduced dustiness from grinded ingredients
- Possibly increased feed intake for chickens
Parameter of chicken feed pellet mill
| Type | Power (Hp) | Output (kg/h) | Weight (kg) | Package Size (mm) |
|---|---|---|---|---|
| ZLSP 120A | 8Hp | 60-100 | 120/140 | 900x500x730 |
| ZLSP 150A | 8Hp | 90-120 | 180/220 | 1000x500x750 |
| ZLSP 200A | 15Hp | 200-300 | 210/240 | 1460x750x900 |
| ZLSP 230A | 22Hp | 300-400 | 280/310 | 1560x850x1000 |
| ZLSP 260A | 30Hp | 400-600 | 330/360 | 1200x500x1070 |
| ZLSP 300A | 55Hp | 600-800 | 410/450 | 1220x600x1000 |
| ZLSP 120B | Three phase 3kw / single phase 2.2kw | 60-100 | 80/100 | 750x320x680 |
| ZLSP 150B | Three phase 4kw | 90-120 | 95/110 | 800x450x700 |
| ZLSP 200B | Three phase 7.5kw | 200-300 | 200/230 | 1650x820x1200 |
| ZLSP 230B | Three phase 11kw | 300-400 | 290/320 | 1050x480x930 |
| ZLSP 260B | Three phase 15kw | 400-600 | 320/360 | 1180x540x1000 |
| ZLSP 300B | Three phase 22kw | 600-800 | 350/380 | 1240x540x950 |
| ZLSP 150C | Three phase 4kw | 90-120 | 105/125 | 1000x480x780 |
| ZLSP 200C | Three phase 7.5kw | 200-300 | 210/230 | 1050x550x830 |
| ZLSP 230C | Three phase 11kw | 300-400 | 290/320 | 1200x560x950 |
| ZLSP 260C | Three phase 15kw | 400-600 | 340/370 | 1240x580x1000 |
| ZLSP 300C | Three phase 22kw | 600-800 | 420/465 | 1300x620x1100 |
| ZLSP 120Q | 7.5Hp | 60-100 | 120/140 | 900x500x730 |
| ZLSP 150Q | 10Hp | 60-120 | 180/220 | 1000x500x750 |
| ZLSP 150P | ≥8Hp | 90-120 | 105/125 | 900x540x1020 |
| ZLSP 200P | ≥15Hp | 200-300 | 210/230 | 1000x540x1020 |
| ZLSP 230P | ≥22Hp | 300-400 | 290/320 | 1000x540x1020 |
| ZLSP 260P | ≥30Hp | 400-600 | 340/370 | 1050x540x900 |
| ZLSP 300P | ≥55Hp | 600-800 | 425/465 | 1100x540x1000 |
